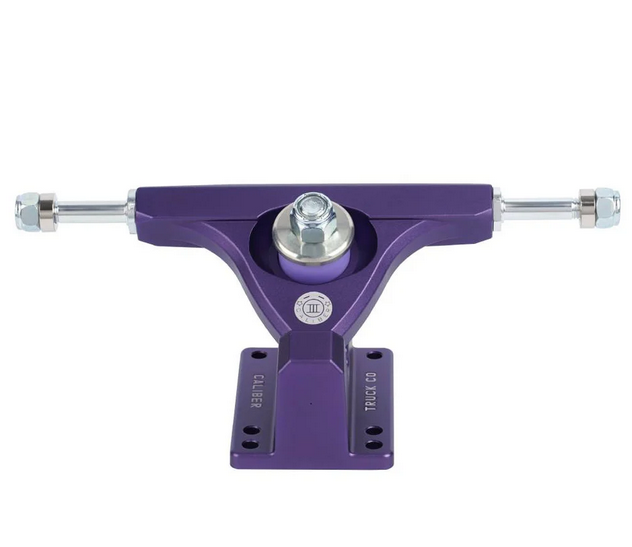

Caliber III 125mm Precision 25° Raked Purple Truck

Price is for ONE truck

The new Precision Caliber III comes in at 125mm with a spaceable option to 135mm and baseplate options of 50, 44, 30 and 25 degrees.

Priced to be easy on the wallet, these trucks are meant for anyone that is serious about performance and is curious about the recent trend of small trucks for downhill but doesn’t want to break the bank by purchasing other, more expensive options.

These trucks have been tested over the last 18 months by some of the fastest riders in the world. They even earned a 6th place finish at a World Championship race, beating out most competing truck brands.

Pre-hardened 6061-T6 aluminum billet, precision CNC cut down to 0.01mm tolerances, and finished with machined & self-lubricating Delrin pivots, 4140 hardened high-strength axles, a tuned bushing setup stock, these trucks are some of the best money can buy.

Now, the aforementioned is a lot of nerdy technical jargon. We don’t really care about that sort of stuff. You should be hauling ass with your friends, filming your friends, crashing with your friends, and smiling with your friends… All we care about is having fun and these trucks will just help with that. Oh, they also come in fun colors which is fun.

These trucks are not cast or forged, the are 100% CNC Precison cut.

Built in the same Caliber geometry we all grew up on and love. These hangers and baseplates are backward compatible with all Caliber trucks. You can put a precision baseplate with a Caliber 3 cast hanger and visa versa.

All the baseplates (except 50 degree) have the “Caliber Shim”. The baseplate ships with a shim, this shim can be removed to run tall bushings. No restriction in the type of bushings you want to use.

There are so many extra componets to make these trucks fly like a magic carpet. All hangers come with 88 Donuts, and extra bushing inserted inside tha hanger to reduce slop. All trucks ship with big and small kingpin nuts, so if you want to run tall bushings, you can use a smaller nut for a but more room. All the washers are precision and fit perfectly.

Price is for one truck

Hanger width is 125mm but longer axles allow the truck to be spaced to 135mm

Ride height for all baseplate degrees are the same, so you can mix and match any truck in the series.

Single truck weight is 442g

5mm rake

Bushings are 95a and standard barrels

Purple truck is 25 degree baseplate

Weight 2 kg
Dimensions 15 × 15 × 15 cm
